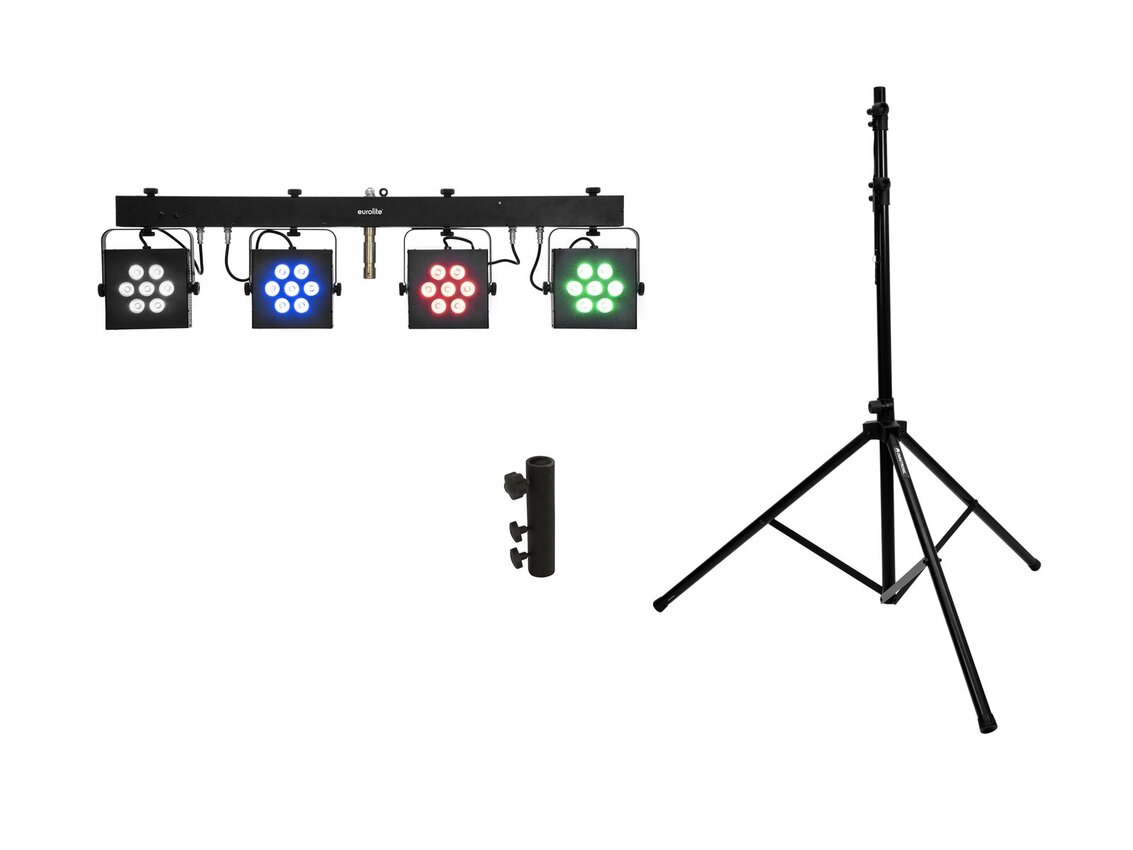

EUROLITE Set LED KLS-3002 + M-4 Speaker-System Stand

EUROLITE LED KLS-3002 Next Compact Light Set

Bar with 4 powerful RGBAW/UV spots, QuickDMX support, IR remote control and carrying bag

Crossbar with integrated DMX control unit and TV spigot for tripod installation
7 powerful LEDs 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
spots separate controlling
With a beam angle of 19
Silent operation
20 integrated show programs
Direct color selection for 21 preset colors
Dimmer electronic; color blend stepless; color selection; program selection
UV effect
Control via stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in EASY SHOW 1; LightJ; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
For application areas such as: Small lender; Lender; Wedding/gala/events; mobile use
Mounting points and power outlets for additional fixtures
Mains input and output for power linking up to 8 units
Package contents

1 x device, 1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x remote control, 1 x bag, 2 x omega bracket, 4 x knurled screw, 4 x washer, 1 x battery, 1 x terminating plug (power)
OMNITRONIC M-4 Speaker-System Stand

Aluminum speaker stand, height adjustable 140-345 cm, maximum load 18 kg

Durable aluminum version
Tube diameter: 35 mm
Adjustable height
Package contents

1 x user manual
EUROLITE STV-3529 Adapter long

Massive adapter for 35 mm tube, 28 mm TV spigot, maximum load WLL 100 kg

For stands with telescopic tube 35 mm
Connection element for cross beam with 28 mm spigot
With M6 and M8 fixation screw
Heavy version for highest stability
TV pin
Package contents

1 x device, 1 x user manual, 2 x knurled screw
Weight: 15,94 kg
EUROLITE LED KLS-3002 Next Compact Light Set
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 225 W
IP classification: IP20
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable length: 3 m
Power output: 2 x IEC connector (F) mounting version fused
1 x P-Con (gray), mounting version Bypass
Device fuse: 5 x 20 mm, T 2,5 A Fuse replaceable
Power output fuse per channel: 5 x 20 mm, T 5 A Fuse replaceable
Lamp type: LED lamp
LED: 7 x 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
DMX channels: 2; 4; 6; 10; 24; 28
DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Cooling: Passive convection cooling
Control: Stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in: EASY SHOW 1; LightJ; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle: 19
Beam angle (1/2 peak): 19
Beam angle (1/10 peak): 35
Housing color: Black
Attachment system: TV spigot 28mm
Omega bracket
Dimensions: Width: 1,28 m
Depth: 8 cm
Height: 29 cm
Weight: 11,14 kg
Noise classification: Class 0 (no noise at all)
Remote control
Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting
OMNITRONIC M-4 Speaker-System Stand
Maximum carrying capacity: 18 kg
Tube diameter sector: 38 – 35 mm
Height: Maximum: 345 cm
Minimum: 140 cm
Adjustable in 10 steps with locking pin
Attachment system: 35mm
Type (general stands): Speaker stand/manual
Material: Aluminum
Color: Black
Transport dimensions: 1,4 m x 13,5 cm
Weight: 3,30 kg
EUROLITE STV-3529 Adapter long
Maximum load BGV C1 (8-fold): 50 kg
Max. load WLL (4-fold): 100 kg
Attachment system: TV spigot 28mm
35mm
Type (general stands): Accessory
Material: Steel, 6 mm, powder-coated
Dimensions: Width: 8,50 cm
Depth: 5 cm
Height: 19,50 cm
Weight: 1,50 kg
