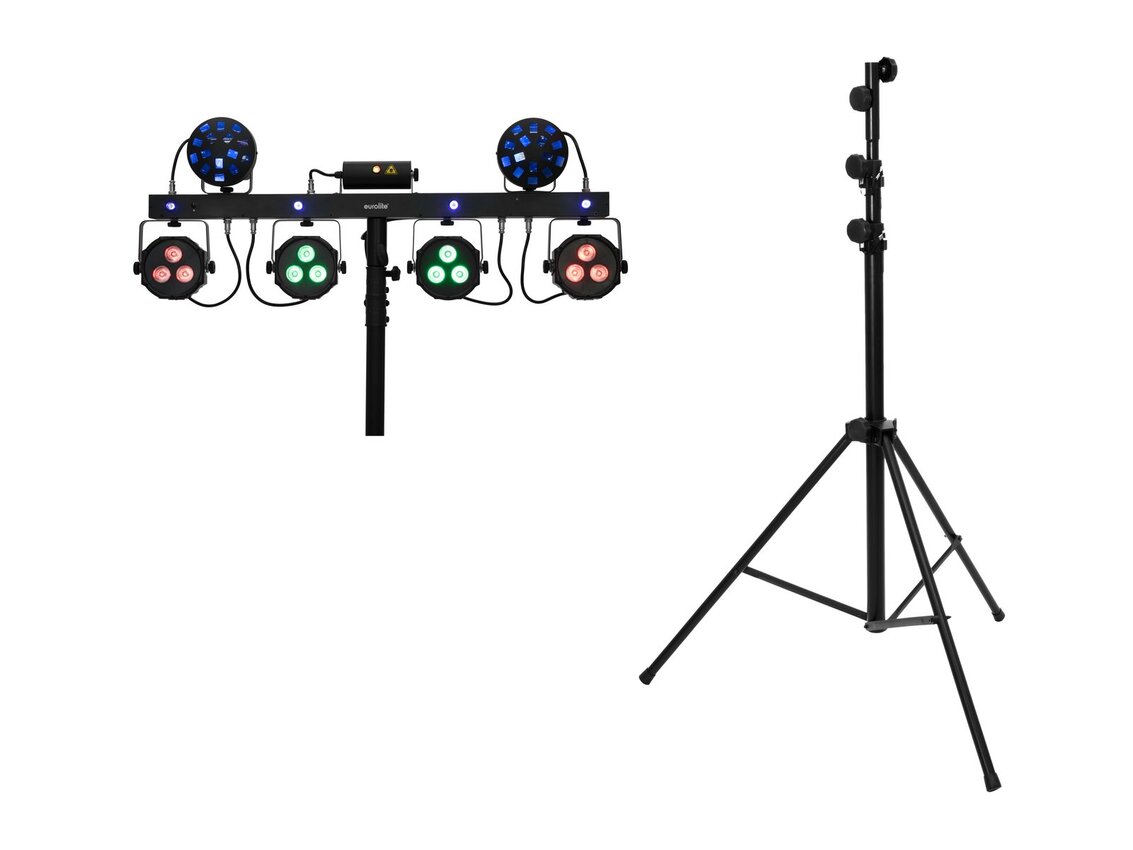

EUROLITE Set LED KLS Laser Bar Next FX Light Set + STV-60-WOT EU Steel stand black

EUROLITE LED KLS Laser Bar Next FX Light Set

Bar with powerful spots, UV strobe LEDs, laser (RG, 2M), QuickDMX port and carrying bag

2 laser diodes project hundreds of red and green laser beams
2 rotating derbies for mirror ball effects
Compact lightweight
Crossbar with integrated DMX control unit and TV spigot for tripod installation
For application areas such as: Wedding/gala/events
When fog is used, this effect becomes especially attractive
26 integrated show programs
Dimmer electronic; color blend stepless; program selection
Control via DMX; stand-alone; Sound to light via Microphone; IR remote control; QuickDMX via USB (optional); Wireless footswitch (optional)
TV pin
With Mounting bracket
Mains input and output for power linking up to 8 units
Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3
laser

Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
spotlight

3 powerful LEDs 4 W high-power 4in1 QCL RGB/WW (homogenous color mix)
4 spots separate controlling
With a beam angle of 7
light effect

4 powerful LEDs 3 W high-power R/G/B/WW
lighting effects separate controlling
Multi beam effect; fan effect; flower effect
bar

4 powerful LEDs 1,5 W high-power ultra violet (UV)
LEDs separate controlling
UV effect; Strobe effect
Package contents

1 x device, 1 x user manual, 1 x power cord, 1 x bag, 1 x declaration of conformity, 1 x remote control, 2 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x terminating plug (power)
EUROLITE STV-60-WOT EU Steel Stand black

Lighting stand, made in EU, maximum load 30 kg, height 150-315 cm

Stable lighting stand for mobile use
TV pin
Available in various colors
Made in Europe
For application areas such as: Mobile use
Adjustable height
Package contents

1 x tripod, 1 x user manual
Weight: 16,15 kg
EUROLITE LED KLS Laser Bar Next FX Light Set
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 90 W
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable length: 3 m
Power output: 1 x P-Con (gray), mounting version
Fuse: T 1 A Fuse replaceable
Lamp type: LED lamp
DMX channels: 6; 8; 11; 21; 25; 29
DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Cooling: Cooling fan
Control: DMX; stand-alone; Sound to light via Microphone; IR remote control; QuickDMX via USB (optional); Wireless footswitch (optional)
Preprogrammed in: Light Captain; EASY SHOW 2; EASY SHOW 3
Housing color: Black
Attachment system: TV spigot 28mm
2x Mounting bracket
Display type: 3 digit 7-segment LED display
Dimensions: Width: 1,11 m
Depth: 15 cm
Height: 41 cm
Weight: 10,50 kg
Noise classification: Class 2 (slight noise)
Laser
Laser class: 2M
Laser color: R/G
Laser module: Red (R) 100 mW 650nm
Green (G) 30 mW 532nm
Spotlight
LED: 3 x 4 W high-power 4in1 QCL RGB/WW (homogenous color mix)
Beam angle: 7
Beam angle (1/2 peak): Spot 7
Beam angle (1/10 peak): Spot 20
Light effect
LED: 4 x 3 W high-power R/G/B/WW
Bar
LED: 4 x 1,5 W high-power ultra violet (UV)
Flash rate: 0 – 30 Hz
Remote control
Battery: Button cell 3.0 V CR2025 lithium manganese built-in
EUROLITE STV-60-WOT EU Steel Stand black
Maximum carrying capacity: 30 kg
Height: Maximum: 320 cm
Minimum: 150 cm
Attachment system: TV spigot 28mm
Type (general stands): Light stand/manual
Material: Steel/magnesium; Steel/magnesium
Color: Black
Transport dimensions: 1,26 m x 12 cm x 15 cm
Weight: 5,65 kg
