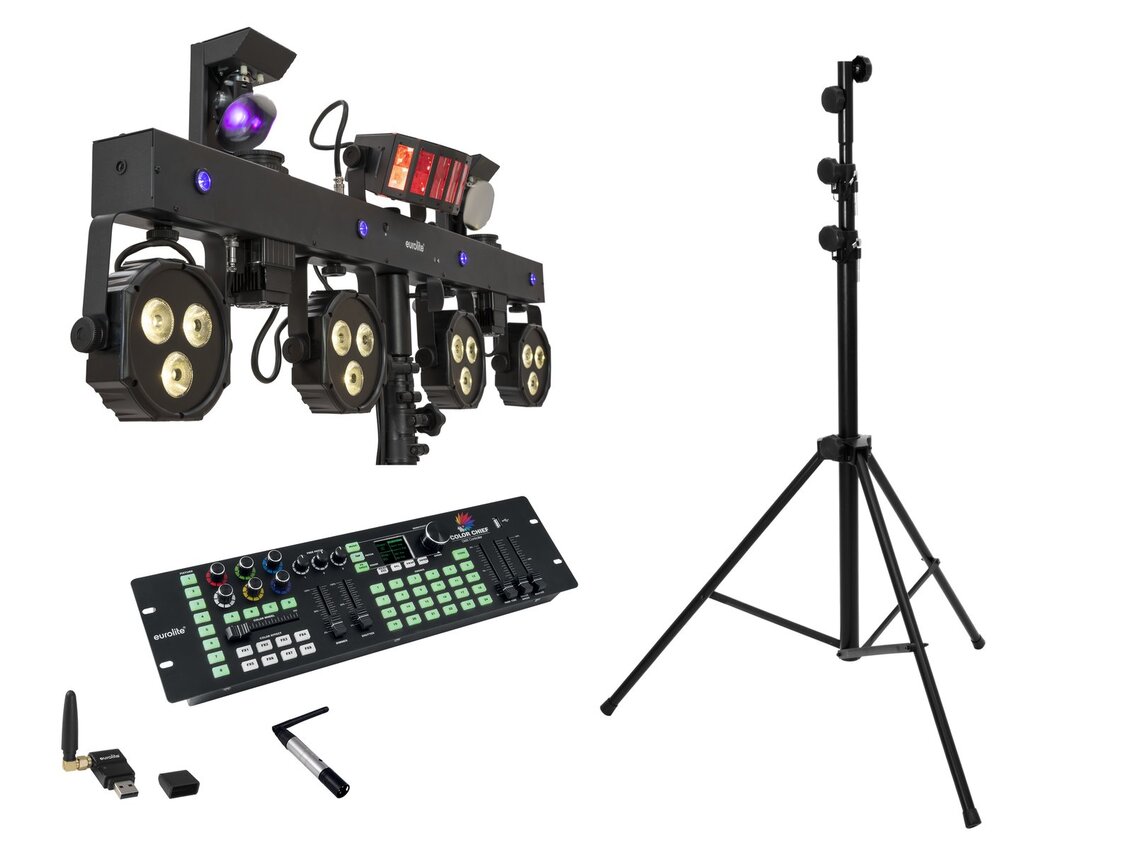

EUROLITE Set LED KLS Scan Next FX Compact Light Set + Controller + Steel stand

Positioning within PAN and TILT
EUROLITE LED KLS Scan Next FX Compact Light Set

Compact bar with derby, spots, scanners, UV effect, QuickDMX port and bag

Crossbar with integrated DMX control unit and TV spigot for tripod installation
When fog is used, this effect becomes especially attractive
Positioning within PAN and TILT
Color wheel; gobo wheel with static gobos
20 integrated show programs
Control via DMX; IR remote control; Sound to light via Microphone; stand-alone; Master/slave function; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
OLED display
For application areas such as: Wedding/gala/events; Lender; Small lender; mobile use
Mains input and output for power linking up to 8 units
Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3
spotlight

3 powerful LEDs 7 W high-power 4in1 QCL RGB/WW (homogenous color mix)
4 spots separate controlling
With a beam angle of 15
light effect

2 powerful LEDs 3 W R/G/B
moving light

1 powerful LED 15 W cold white (CW)
bar

4 powerful LEDs 1 W high-power ultra violet (UV)
LEDs separate controlling
Package contents

1 x device, 1 x user manual, 1 x power cord, 1 x declaration of conformity, 2 x mounting bracket, 1 x remote control, 1 x battery, 1 x bag, 2 x knurled screw, 2 x washer, 1 x terminating plug (power)
EUROLITE QuickDMX USB Wireless Transmitter/Receiver

Wireless miniature DMX transceiver 2.4 GHz, phantom powered

User-friendly USB plug with swivel antenna
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
LED indication for functions
Transceiver, to be used as transmitter or receiver
Requires 5 V phantom power for operation
Can receive and process up to 512 DMX channels
Can transmit up to 512 DMX channels
Control via DMX; QuickDMX; plug and play
Operating range up to 400m with line-of-sight
Package contents

1 x device, 1 x user manual, 1 x declaration of conformity
EUROLITE QuickDMX Wireless Transmitter

Compact wireless DMX transmitter 2.4 GHz

User-friendly 3-pin XLR adapter (male) with swivel antenna
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
1 to 512 QuickDMX receivers can be controlled by each transmitter
LED indication for functions
Transceiver, to be used as transmitter or receiver
Can transmit up to 512 DMX channels
Control via QuickDMX; DMX; plug and play
Operating range up to 400m
Package contents

1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x uSB cable
EUROLITE DMX LED Color Chief Controller

DMX lighting desk with innovative control concept for LED spotlights

Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
For 8 devices or device groups, each with up to 4 segments
Each device can occupy up to 30 channels
Quick and easy programming
Additional fixtures can be configured manually
8 color effects directly selectable
3 additional channels available per fixture (e.g. for rotations)
Color wheel selection and simulation
24 memory spaces for scenes and chases
Several chases can be run simultaneously
USB port for storing program data
Sound control via audio signal or TAP button
Master dimming, fade time and run time easily adjustable
Firmware update via USB
Programmable 24 sequencens
Can transmit up to 240 DMX channels
Control via DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
(19″) 48.3 cm rack installation 3 U
Desktop console housing
Package contents

1 x controller, 1 x user manual, 1 x external mains adapter
EUROLITE STV-60-WOT EU Steel Stand black

Lighting stand, made in EU, maximum load 30 kg, height 150-315 cm

Stable lighting stand for mobile use
TV pin
Available in various colors
Made in Europe
For application areas such as: Mobile use
Adjustable height
Package contents

1 x tripod, 1 x user manual

Weight: 20,86 kg
EUROLITE LED KLS Scan Next FX Compact Light Set
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 115 W
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output: P-Con (gray), mounting version
Fuse: 5 x 20 mm, T 2 A Fuse replaceable
Lamp type: LED lamp
Equipment: Color wheel; gobo wheel with static gobos
DMX channels: 3; 7; 13; 14; 15; 18; 19; 30; 32; 39
DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Cooling: Cooling fan
Control: DMX; IR remote control; Sound to light via Microphone; stand-alone; Master/slave function; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in: Light Captain; EASY SHOW 2; EASY SHOW 3
Illuminance in Lux (lx): Red (R) 1m: 1022 lx, 3m: 125 lx, 6m: 33 lx
Green (G) 1m: 2448 lx, 3m: 285 lx, 6m: 75 lx
Blue (B) 1m: 395 lx, 3m: 47 lx, 6m: 13 lx
Warm white (WW) 1m: 1892 lx, 3m: 219 lx, 6m: 58 lx
All 1m: 4853 lx, 3m: 676 lx, 6m: 175 lx
Housing color: Black
Attachment system: TV spigot 28mm
2x Mounting bracket
Display type: OLED display
Dimensions: Width: 1,1 m
Depth: 15,5 cm
Height: 43 cm
Weight: 12,80 kg
Spotlight
LED: 3 x 7 W high-power 4in1 QCL RGB/WW (homogenous color mix)
Beam angle: 15
Beam angle (1/2 peak): 15
Beam angle (1/10 peak): 28
Light effect
LED: 2 x 3 W R/G/B
Moving light
LED: 1 x 15 W cold white (CW)
Bar
LED: 4 x 1 W high-power ultra violet (UV)
Remote control
Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting
EUROLITE QuickDMX USB Wireless Transmitter/Receiver
Power supply: 5 V DC
IP classification: IP20
Power connection: Mains input via USB A (M) connectable version
DMX channels: Input 512
Output 512
DMX output: 1 x USB, type A
Control: DMX; QuickDMX; plug and play
Carrier frequency: 2,4 GHz
Modulation: GFSK
Parallel mode: Max. 6 transmitter
Range: Range up to 400m with line-of-sight
Color: Black
Dimensions: Width: 8,6 cm
Depth: 4 cm
Height: 1,1 cm
Weight: 10 g
EUROLITE QuickDMX Wireless Transmitter
Power supply: 100-240 V AC, 50/60 Hz
5 V DC 1 A
IP classification: IP20
Power connection: Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
DMX channels: Output 512
DMX input: 1 x 3-pin XLR (M)
Control: QuickDMX; DMX; plug and play
Carrier frequency: 2,4 GHz
Modulation: GFSK
Parallel mode: Max. 6 transmitter
Range: Range up to 400m
Color: Silver
Dimensions: Length: 21,2 cm
Diameter: 1,8 cm
Weight: 150 g
EUROLITE DMX LED Color Chief Controller
Power supply: 100-240 V AC, 50/60 Hz
9 V DC 800 mA
Power consumption: 10 W
IP classification: IP20
Power connection: Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Programs: Programmable
24 Sequences
DMX channels: Output 240
DMX output: 1 x 3-pin XLR (F) mounting version
Control: DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
Housing color: Black
Available storage media: USB devices (FAT 32)
USB port: Typ A
Color: Black
Housing design: (19″) 48.3 cm rack installation 3 U
Desktop console housing
Dimensions: Width: 48,3 cm
Depth: 13,35 cm
Height: 8,5 cm
Weight: 2,25 kg
EUROLITE STV-60-WOT EU Steel Stand black
Maximum carrying capacity: 30 kg
Height: Maximum: 320 cm
Minimum: 150 cm
Attachment system: TV spigot 28mm
Type (general stands): Light stand/manual
Material: Steel/magnesium; Steel/magnesium
Color: Black
Transport dimensions: 1,26 m x 12 cm x 15 cm
Weight: 5,65 kg
