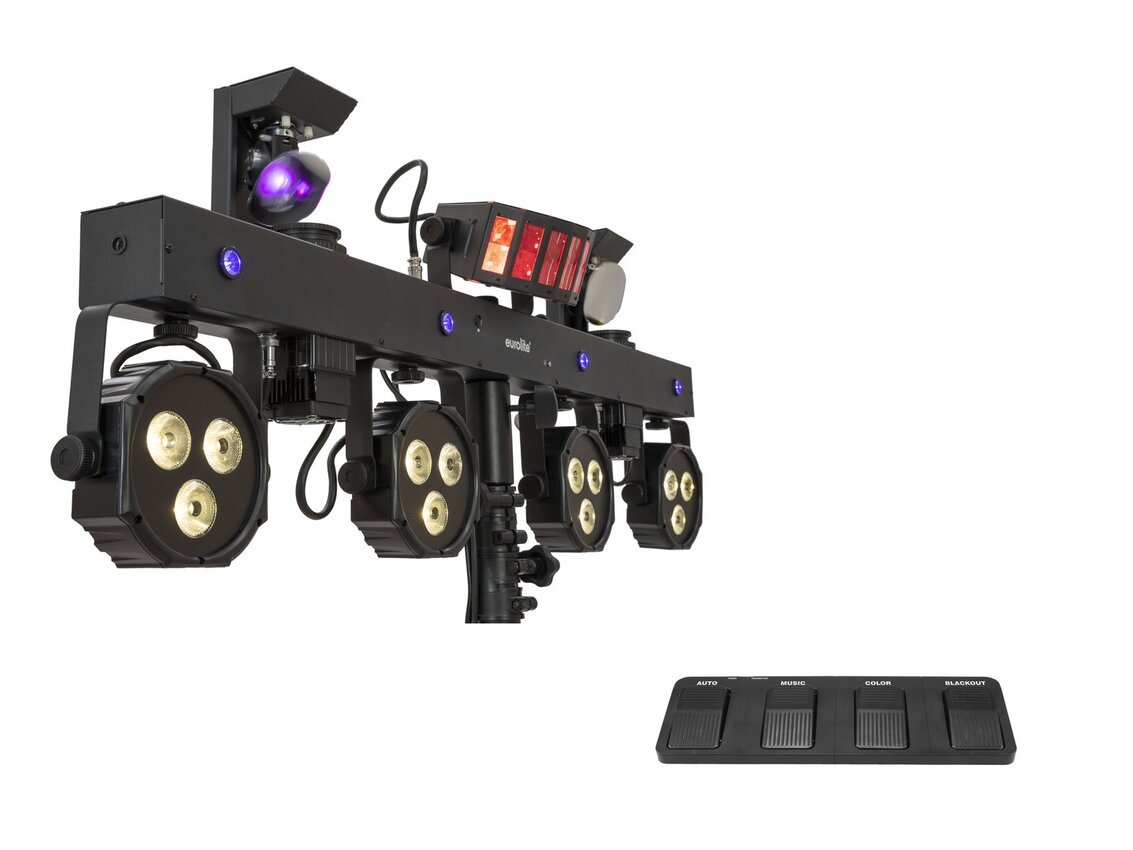

EUROLITE Set LED KLS Scan Next FX Compact Light Set + Foot switch

Positioning within PAN and TILT
EUROLITE LED KLS Scan Next FX Compact Light Set

Compact bar with derby, spots, scanners, UV effect, QuickDMX port and bag

Crossbar with integrated DMX control unit and TV spigot for tripod installation
When fog is used, this effect becomes especially attractive
Positioning within PAN and TILT
Color wheel; gobo wheel with static gobos
20 integrated show programs
Control via DMX; IR remote control; Sound to light via Microphone; stand-alone; Master/slave function; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
OLED display
For application areas such as: Wedding/gala/events; Lender; Small lender; mobile use
Mains input and output for power linking up to 8 units
Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3
spotlight

3 powerful LEDs 7 W high-power 4in1 QCL RGB/WW (homogenous color mix)
4 spots separate controlling
With a beam angle of 15
light effect

2 powerful LEDs 3 W R/G/B
moving light

1 powerful LED 15 W cold white (CW)
bar

4 powerful LEDs 1 W high-power ultra violet (UV)
LEDs separate controlling
Package contents

1 x device, 1 x user manual, 1 x power cord, 1 x declaration of conformity, 2 x mounting bracket, 1 x remote control, 1 x battery, 1 x bag, 2 x knurled screw, 2 x washer, 1 x terminating plug (power)
EUROLITE Foot Switch KLS Compact Light Set MK2

Wireless foot switch for KLS Compact Light Sets

Powered by a battery/battery pack
Non-slip pedal housing
Package contents

1 x foot control, 1 x declaration of conformity, 1 x battery
Weight: 13,64 kg
EUROLITE LED KLS Scan Next FX Compact Light Set
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 115 W
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output: P-Con (gray), mounting version
Fuse: 5 x 20 mm, T 2 A Fuse replaceable
Lamp type: LED lamp
Equipment: Color wheel; gobo wheel with static gobos
DMX channels: 3; 7; 13; 14; 15; 18; 19; 30; 32; 39
DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Cooling: Cooling fan
Control: DMX; IR remote control; Sound to light via Microphone; stand-alone; Master/slave function; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in: Light Captain; EASY SHOW 2; EASY SHOW 3
Illuminance in Lux (lx): Red (R) 1m: 1022 lx, 3m: 125 lx, 6m: 33 lx
Green (G) 1m: 2448 lx, 3m: 285 lx, 6m: 75 lx
Blue (B) 1m: 395 lx, 3m: 47 lx, 6m: 13 lx
Warm white (WW) 1m: 1892 lx, 3m: 219 lx, 6m: 58 lx
All 1m: 4853 lx, 3m: 676 lx, 6m: 175 lx
Housing color: Black
Attachment system: TV spigot 28mm
2x Mounting bracket
Display type: OLED display
Dimensions: Width: 1,1 m
Depth: 15,5 cm
Height: 43 cm
Weight: 12,80 kg
Spotlight
LED: 3 x 7 W high-power 4in1 QCL RGB/WW (homogenous color mix)
Beam angle: 15
Beam angle (1/2 peak): 15
Beam angle (1/10 peak): 28
Light effect
LED: 2 x 3 W R/G/B
Moving light
LED: 1 x 15 W cold white (CW)
Bar
LED: 4 x 1 W high-power ultra violet (UV)
Remote control
Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting
EUROLITE Foot Switch KLS Compact Light Set MK2
IP classification: IP20
Battery: 1 x 9.0 V E block 6F22 zinc carbon included
Housing color: Black
Carrier frequency: 433,92 MHz
Housing design: Non-slip pedal housing
Weight: 840 g
