4-channel microphone system with UHF PLL technology

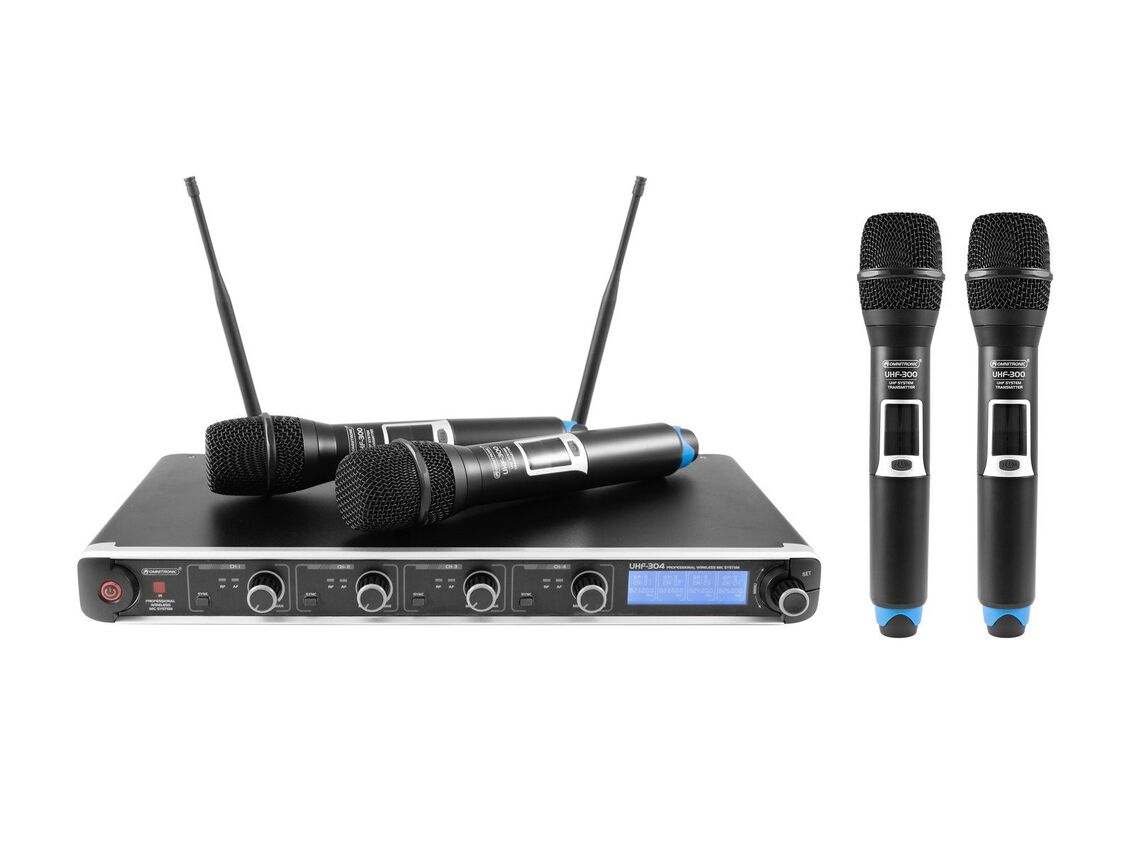

4-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
93 preset channels in 10 channel groups
Easy and error-free synchronization between receiver and transmitter via infrared signal
LEDs for carrier and audio signal
4 separate channels with volume controls

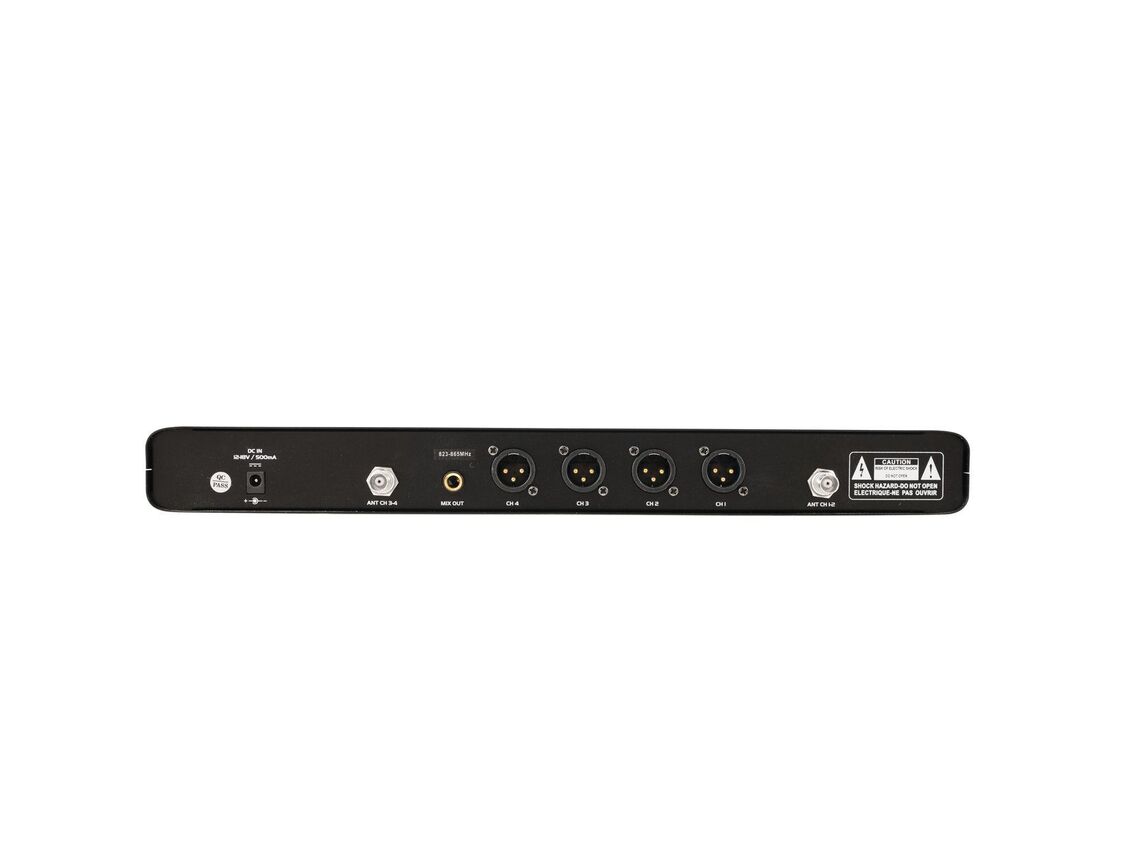

Balanced XLR output per channel
Unbalanced 6.3 mm jack
Detachable BNC antennas
4 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
LCD display
UHF 823 – 832 MHz License-free and approved in large parts of europe
UHF 863 – 865 MHz License-free and approved in europe
Operating range up to 60m with line-of-sight
Receiver
Desktop console housing
(19″) 48.3 cm rack installation possible 1 U
Microphone
Polar pattern: Cardioid
Package contents
1 x receiver, 2 x antenna, 1 x external mains adapter, 4 x microphone, 1 x jack cable, 4 x holder, 1 x mounting bracket, 4 x screw, 1 x user manual, 1 x declaration of conformity
Technical specifications
Type:
Wireless set
Display type:
LCD display
Display:
Chanal , frequency , goup
Frequency band:
UHF 823 – 832 MHz; UHF 863 – 865 MHz
Frequency selection:
93 Switchable frequencys
Modulation:
FM
Frequency stability:
± 0,001 %
Range:
Range up to 60m with line-of-sight
Weight:
3,00 kg
Receiver
Power supply:
100-240 V AC, 50/60 Hz12 V DC 500 mA
Power consumption:
6 W
Power connection:
Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:
4
Frequency range:
50 – 18,000 Hz
S/N ratio:
>80 dB
THD:
