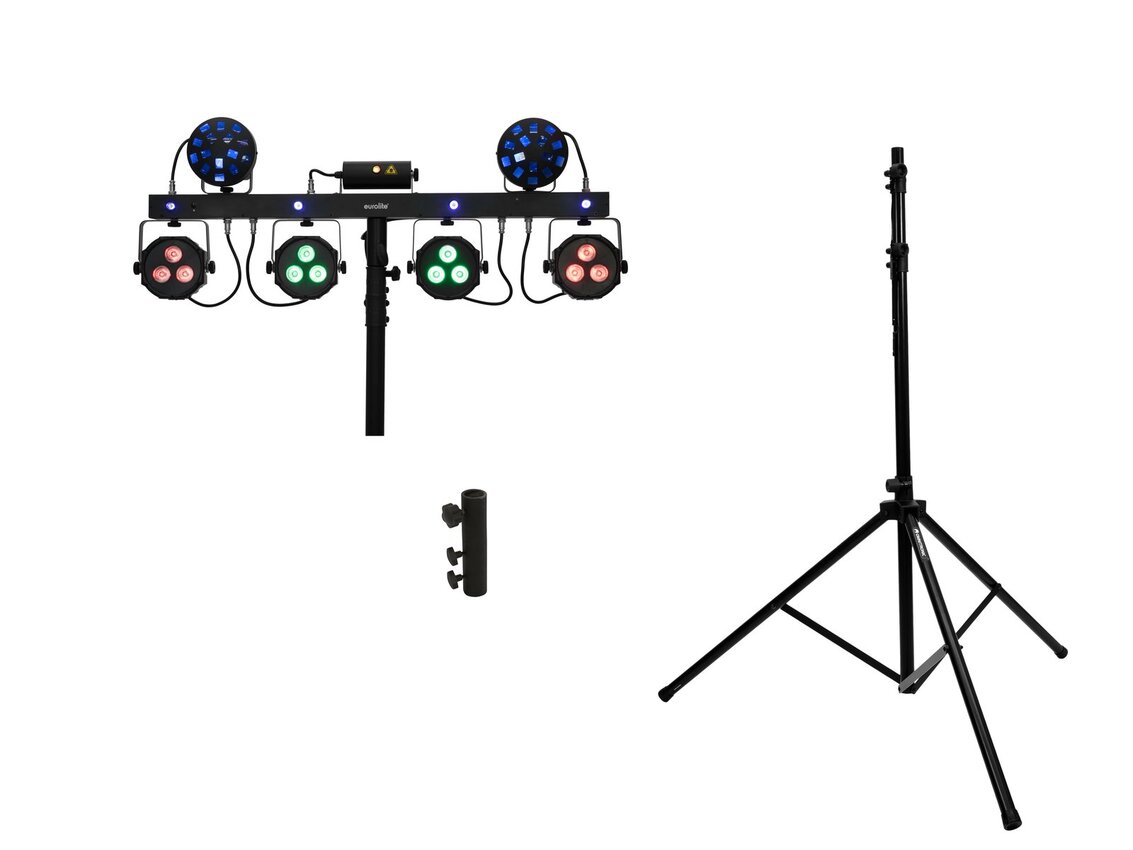

EUROLITE Set LED KLS Laser Bar Next FX Light Set + M-4 Speaker-System Stand

EUROLITE LED KLS Laser Bar Next FX Light Set

Bar with powerful spots, UV strobe LEDs, laser (RG, 2M), QuickDMX port and carrying bag

2 laser diodes project hundreds of red and green laser beams
2 rotating derbies for mirror ball effects
Compact lightweight
Crossbar with integrated DMX control unit and TV spigot for tripod installation
For application areas such as: Wedding/gala/events
When fog is used, this effect becomes especially attractive
26 integrated show programs
Dimmer electronic; color blend stepless; program selection
Control via DMX; stand-alone; Sound to light via Microphone; IR remote control; QuickDMX via USB (optional); Wireless footswitch (optional)
TV pin
With Mounting bracket
Mains input and output for power linking up to 8 units
Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3
laser

Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
spotlight

3 powerful LEDs 4 W high-power 4in1 QCL RGB/WW (homogenous color mix)
4 spots separate controlling
With a beam angle of 7
light effect

4 powerful LEDs 3 W high-power R/G/B/WW
lighting effects separate controlling
Multi beam effect; fan effect; flower effect
bar

4 powerful LEDs 1,5 W high-power ultra violet (UV)
LEDs separate controlling
UV effect; Strobe effect
Package contents

1 x device, 1 x user manual, 1 x power cord, 1 x bag, 1 x declaration of conformity, 1 x remote control, 2 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x terminating plug (power)
OMNITRONIC M-4 Speaker-System Stand

Aluminum speaker stand, height adjustable 140-345 cm, maximum load 18 kg

Durable aluminum version
Tube diameter: 35 mm
Adjustable height
Package contents

1 x user manual
EUROLITE STV-3529 Adapter long

Massive adapter for 35 mm tube, 28 mm TV spigot, maximum load WLL 100 kg

For stands with telescopic tube 35 mm
Connection element for cross beam with 28 mm spigot
With M6 and M8 fixation screw
Heavy version for highest stability
TV pin
Package contents

1 x device, 1 x user manual, 2 x knurled screw
Weight: 15,30 kg
EUROLITE LED KLS Laser Bar Next FX Light Set
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 90 W
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable length: 3 m
Power output: 1 x P-Con (gray), mounting version
Fuse: T 1 A Fuse replaceable
Lamp type: LED lamp
DMX channels: 6; 8; 11; 21; 25; 29
DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Cooling: Cooling fan
Control: DMX; stand-alone; Sound to light via Microphone; IR remote control; QuickDMX via USB (optional); Wireless footswitch (optional)
Preprogrammed in: Light Captain; EASY SHOW 2; EASY SHOW 3
Housing color: Black
Attachment system: TV spigot 28mm
2x Mounting bracket
Display type: 3 digit 7-segment LED display
Dimensions: Width: 1,11 m
Depth: 15 cm
Height: 41 cm
Weight: 10,50 kg
Noise classification: Class 2 (slight noise)
Laser
Laser class: 2M
Laser color: R/G
Laser module: Red (R) 100 mW 650nm
Green (G) 30 mW 532nm
Spotlight
LED: 3 x 4 W high-power 4in1 QCL RGB/WW (homogenous color mix)
Beam angle: 7
Beam angle (1/2 peak): Spot 7
Beam angle (1/10 peak): Spot 20
Light effect
LED: 4 x 3 W high-power R/G/B/WW
Bar
LED: 4 x 1,5 W high-power ultra violet (UV)
Flash rate: 0 – 30 Hz
Remote control
Battery: Button cell 3.0 V CR2025 lithium manganese built-in
OMNITRONIC M-4 Speaker-System Stand
Maximum carrying capacity: 18 kg
Tube diameter sector: 38 – 35 mm
Height: Maximum: 345 cm
Minimum: 140 cm
Adjustable in 10 steps with locking pin
Attachment system: 35mm
Type (general stands): Speaker stand/manual
Material: Aluminum
Color: Black
Transport dimensions: 1,4 m x 13,5 cm
Weight: 3,30 kg
EUROLITE STV-3529 Adapter long
Maximum load BGV C1 (8-fold): 50 kg
Max. load WLL (4-fold): 100 kg
Attachment system: TV spigot 28mm
35mm
Type (general stands): Accessory
Material: Steel, 6 mm, powder-coated
Dimensions: Width: 8,50 cm
Depth: 5 cm
Height: 19,50 cm
Weight: 1,50 kg
